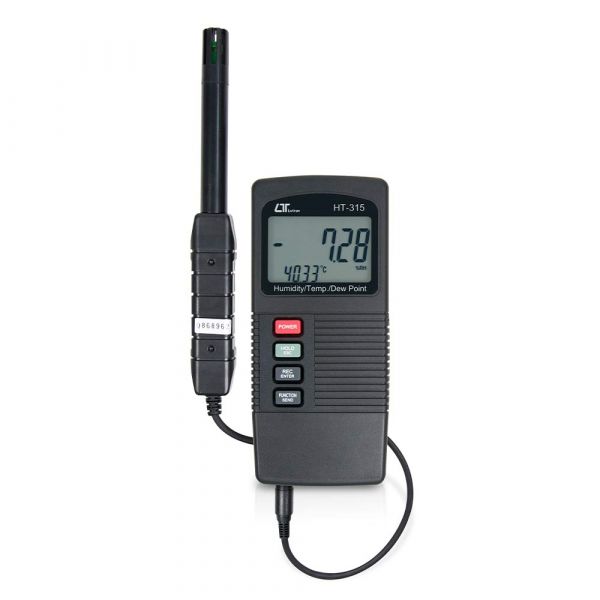

Lutron HT-315 Pocket Humidity Meter

SKU
HT-315
฿5,600.00
In stock

Humidity | Temperature | Dew point
Measurement range: 0 to 80℃ | 10 to 95%RH
Dew point range: -25.3 to 48.9℃
LCD with two display, easy readout
RS232 PC interface

Add to Compare

Lutron HT-315 Pocket Humidity Meter

Humidity, Temperature, Dew point are combined into one meter, intelligent and professional, pocket size with separate humidity & temperature probe. Data logger function can save max. 1000 reading data with recall. LCD display with two values, easy readout, Data output with RS 232 PC serial interface.

Functions
  • Sampling Time Manaul/ Auto (1, 2, 10, 30, 60, 600, 1800, 3600 seconds)
  • Data hold freeze the display reading
  • Record Max/ Min with recall value
  • Auto Power Off
  • Low battery Indicator
Lutron HT-315 Pocket Humidity Meter
Lutron HT-315 Pocket Humidity Meter
Measurement Range Accuracy Resolution
Humidity 10 to 95% RH ±3% RH (< 70% RH)
± (3% reading + 1% RH) (≥ 70% RH)
0.01% RH
Temperature 0 to 80℃ -0.8℃ 0.01℃
Dew Point -25.3 to 48.9℃ 0.01℃
Sampling Time 0.8 second
Data Storage Record max./ min. for 1000 reading
Functions Data hold, record max./ min., Auto power off, Automatic temp. compensation
Interface RS232 PC interface
Power requirement Battery DC 9V
Dimensions/ Weight 135 x 60 x 33 mm/ 264 g
SKUHT-315
Weight264.000000
Dimension135 x 60 x 33 mm
ManufacturerLutron
Data loggerNo
Humidity measurement range

10 to 95%RH

Temperature measurement range

0 to 80ºC

Dew Point measurementYes
Alarm FunctionNo
Heat Index & WBGT measurementNo
Other Function
  • Sampling Time Manual/ Auto (1, 2, 10, 30, 60, 600, 1800, 3600 seconds)
  • Data hold to freeze the display reading
  • Record Max/ Min with recall value
  • Auto Power Off
  • Low battery Indicator
  • Automatic temp. compensation for the Humidity function
Power Supply

Battery 9V

Resolution

0.01℃/ 0.01%RH

Sensor Output InterfaceNo
Accuracy

± 0.8℃ (Temperature *Probe)
 ± (3% reading + 1%RH)(≧70% RH)
(± 3% RH)(< 70% RH)(Humidity)

Your Rating

ความชื้นสัมพัทธ์ในอากาศ

ความชื้นสัมพัทธ์ในอากาศ ความชื้น (Humidity) คือ ปริมาณไอน้ำที่มีอยู่ในอากาศ ความชื้นของอากาศมีการเปลี่ยนแปลงอยู่ตลอดเวลา จะมากหรือน้อยขึ้นอยู่กับความดันและอุณหภูมิ ความชื้นสัมพัทธ์ (Relative Humidity) คือ “อัตราส่วนของปริมาณไอน้ำที่มีอยู่จริงในอากาศ ต่อ ปริมาณไอน้ำที่จะทำให้อากาศอิ่มตัว ณ อุณหภูมิเดียวกัน” หรือ “อัตราส่วนของความดันไอน้ำที่มีอยู่จริง ต่อ ความดันไอน้ำอิ่มตัว” ซึ่งค่าความชื้นสัมพัทธ์

อุปกรณ์ที่มีมาในชุด

  • Main unit × 1
  • Humidity Probe × 1
  • Instruction manual × 1
  • Calibration Certificate (from manufacture) × 1
  • Battery 9V (ทางเลกะแถมให้ฟรี) × 1
 อุปกรณ์ที่มาในชุด

▲ ภาพแสดงอุปกรณ์ที่มาในชุด
