Lutron PDT-2250 เครื่องควบคุม Tachometer แบบตั้งโต๊ะ | RPM Controller

SKU

PDT-2250

Skip to the end of the images gallery

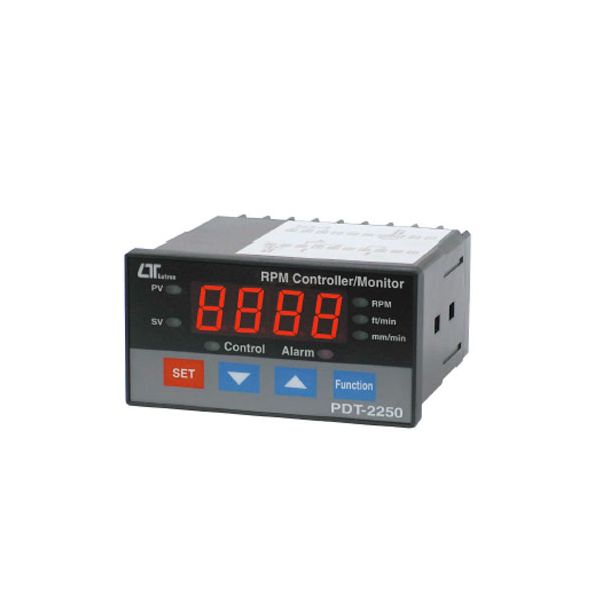

main product photo

Skip to the beginning of the images gallery

-10%

Special Price ฿6,660.00 was ฿7,400.00

In stock

เครื่องควบคุม Tachometer แบบตั้งโต๊ะ
หน้าจอแสดงผล 4 digits red LED
Measurement ranges : 10 to 99,999 RPM
Build in control relay and the alarm relay
Hysteresis value setting for control and alarm function
RS232 computer interface
2 Relay Output
ยี่ห้อ Lutron, Taiwan

Categories: Lutron , Accessories for Tachometers & Stroboscopes, Product Type 2N (Pre-Order)

Lutron PDT-2250 เครื่องควบคุม Tachometer แบบตั้งโต๊ะ | RPM Controller

Display 4 digits red LED ขนาด 14 mm, ใช้งานง่ายด้วยการออกแบบฟังก์ชั่นปุ่มกดต่างๆบนแผงหน้าปัด และ standard DIN case (ขนาด : 96 x 48 mm) Control/ Alarm function

Specification

Measurement range	■ Photo Tachometer : 10 to 99,999 RPM ■ Surface Speed ( m/min. ) : 0.05 to 9,999 m/min ■ Surface Speed ( ft/min. ) : 0.2 to 32,805 ft/min
Accuracy	± ( 0.1 % + 1 digit )
Resolution	■ RPM 0.1 RPM : < 1,000 RPM 1 RPM : 1,000 to 9,999 RPM 10 RPM : 10,000 to 99,999 RPM ■ m/min 0.01 m/min. : < 100 m/min. 0.1 m/min. : 100 to 999 m/min. 1 m/min. : 1,000 to 9,999 m/min. ■ ft/min 0.1 ft/min. < 1000 ft/min. 1 ft/min. 1,000 to 9,999 ft/min. 10 ft/min. 10,000 to 32,805 ft/min.
Display	4 digits red LED, 14 mm ( 0.55 inch ) digit height
Display	Unit : RPM : RPM Surface speed : m/min ( meter per min. ), ft/min ( feet per min. )
Circuit	Custom chip of microprocessor LSI circuit
Sampling Time	Approx. 1 second
Relay Output	2 relays
Relay Output	Function : Relay 1 : control relay Relay 2 : High/Low alarm relay
Setting Value	■ Control value setting ■ Alarm high/ low limit value setting ■ Pulse no. of each round ■ Roller diameter value setting ■ Hysteresis value setting * Setting for RPM, m/min., ft/min
Input signal	Pulse
Time base	Quartz crystal
External Power Supply	DC 12 V, 50 mA max
Data Output	RS 232 PC serial interface
Power Supply	90 to 260 ACV, 50/60 Hz
Power Consumption	■ Approx. 4.7 VA/AC 110V ■ Approx. 5.3 VA/AC 220V
Dimension	■ DIN size : 96 x 48 mm ■ Depth : 110 mm ■ weighr : 384 g
AccessoriesIncluded	■ Instruction manual x 1 ■ Case holder with screw x 2
Optional Accessories	■ Proximity sensor, PX-01 ■ Photo sensor, PI-06 ■ Data Acquisition software SW-E816 ■ RS232 cable, UPCB-02 ■ USB cable, USB-01 ■ GSM controller, GSM-889 ■ Interface cable ( cable between meter to GSM-889 ), GMCB-89

More Information

SKU	PDT-2250
Weight	384.000000
Dimension	96 x 48 x 110
Manufacturer	Lutron

AccessoriesIncluded

Instruction manual x 1
Case holder with screw x 2

Optional Accessories

Proximity sensor, PX-01
Photo sensor, PI-06
Data Acquisition software SW-E816
RS232 cable, UPCB-02
USB cable, USB-01
GSM controller, GSM-889
Interface cable ( cable between meter to GSM-889 ), GMCB-89
