SK Sato SK-L400T Thermometer 4 Channels

SKU
SK-L400T
฿14,500.00
In stock

No. 8191-00
4-channel datalogger for temperature measurement with K type themocouple probes.
Possible to simultaneously display four temperatures from four different locations on the large LCD.
The measured values can be logged on the SD card.
NB. Probes are separately purchased, not included in the main unit.

Add to Compare

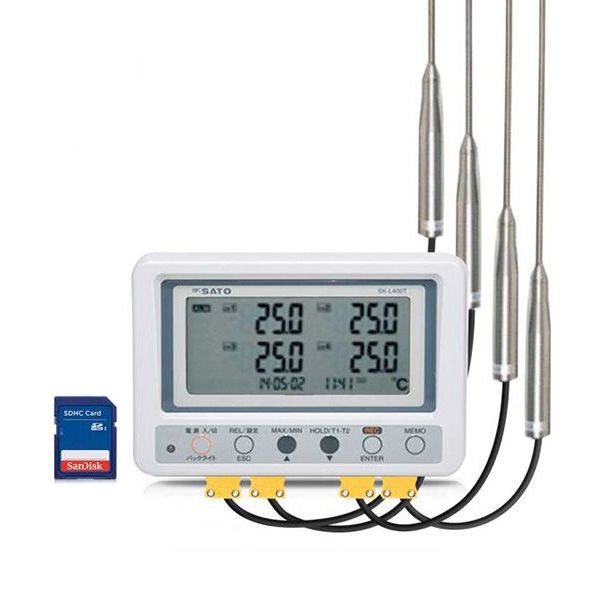

SK Sato SK-L400T Thermometer 4 Channels (Type K)

No. 8191-00
4-channel datalogger for temperature measurement with K type themocouple probes. Possible to simultaneously display four temperatures from four different locations on the large LCD. The measured values can be logged on the SD card.
NB. Probes are separately purchased, not included in the main unit.

Simultaneously measures temperature at four locations.

Up to four K-type thermocouple probes can be connected.
Simultaneously displays four temperatures from four locations (channels) on the large LCD for easy reading. By using the ASTM (former ANSI) miniature connector for the K-type thermocouple, various optional sensors can be connected.

Easy visibility.
Measured data are displayed on a large display. Backlight makes it easy to read in dark places.

Logging the measured values on the SD card
The measured values can be logged on the SD card installed in the unit.
By using the analysis software "4ch DATALOGGER for Windows" included with the unit, graph plotting and data analysis can be easily done.

Alarm issuance at upper and lower limit temperatures
Different alarm values (upper and lower) can be set for the four channels. If the measured value goes out of the set limit value, a buzzer sounds and the LED lamp flashes to alert.

Data analysis software povided as a standard accessory.
The acquired data can be easily evaluated with graphs by using the exclusive software.

Display of various calculation results.
Display of the maximum (MAX) or minimum (MIN) value, relative value (REL function), temperature difference (T1 – T2 function), offset function.

Logging interval can be selected from 14 options..
1 sec. 2 sec, 5 sec, 10 sec. 15 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, 60 min and 90 min.

Manual logging, preset logging, memo function
Equipped with manual logging, preset logging that enables you to set the time at which to start or stop logging, and a memo function for quickly logging the current measured value. Can be used for various data collection operations..

AC adapter is availble at option.
For a long tern recording, AC adapter is useful.

Mouting on a tripod.
The threaded hole on th back of the unit makes it easy to mount on a tripod.

อุปกรณ์มาตรฐาน SK-L400T

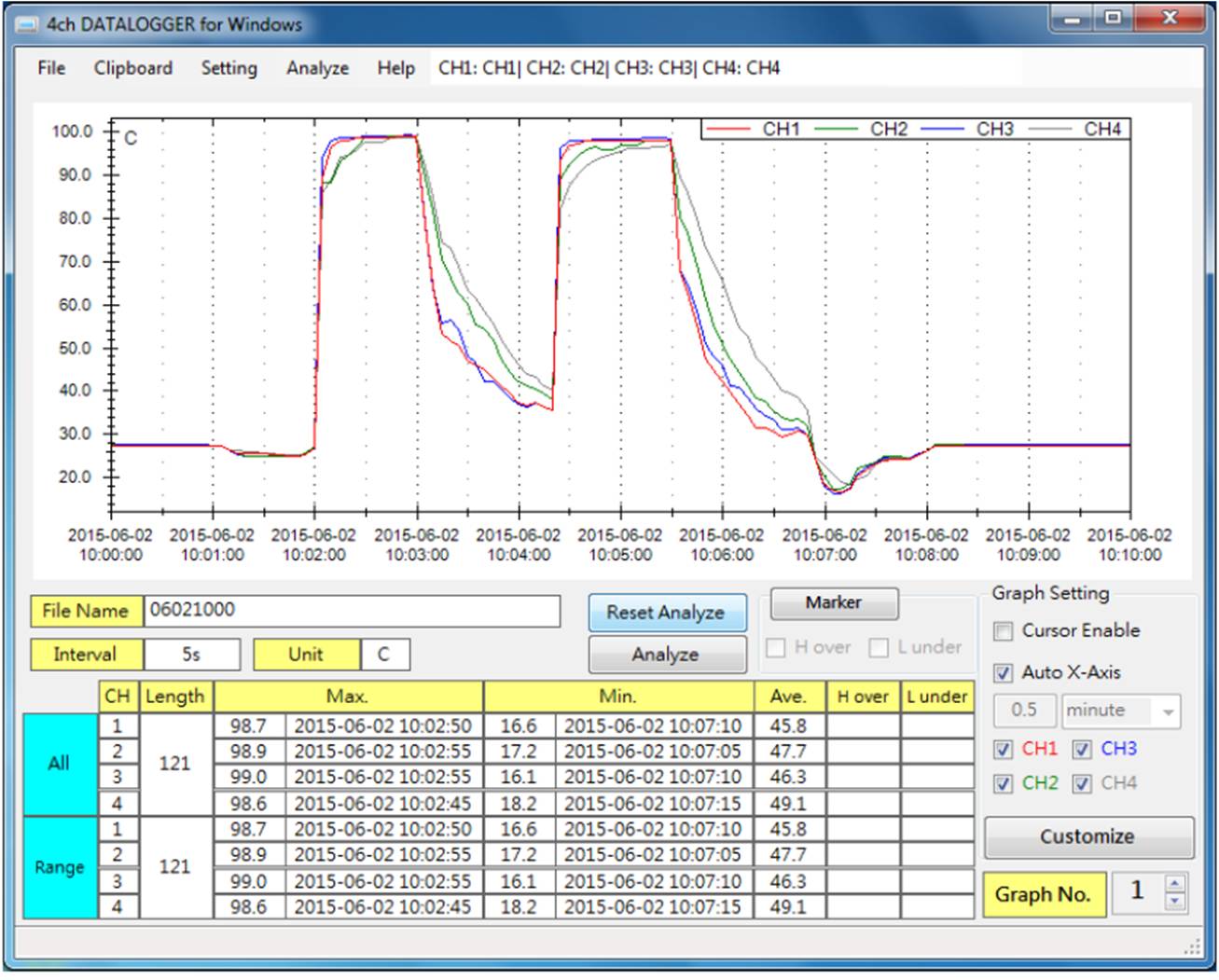

Data Analysis Software
Exclusive data analysis software is included with SK-L400T datalogger as a standard accessory

SKUSK-L400T
Weight420.000000
Dimension158 x 106 x 40 mm.
ManufacturerSK Sato
Measurement objectAmbient Temperature, Core Temperature, Surface Temperature, Temperature in Liquid
Sensor connector typeMiniture connector for thermocouple
Supported sensor TypeThermocouple Type K (ASTM Miniature connector)
Other FunctionSD Card Data Logger Hi/ Low alarm LED lamp/ Buzzer Backlight
Power SupplyAlkaline Battery AA x 4
Resolution0.1 ℃/1 ℃
Temperature Sensor TypeThermocouple
Number of Channel3 Channels and more...
Water resistanceNo
Sensor Output InterfaceNo
Temperature Range-202 to 1372ºC
Data loggerYes
Accuracy

±(0.3% reading + 1)°C (at 23°C ±5°C)

Your Rating

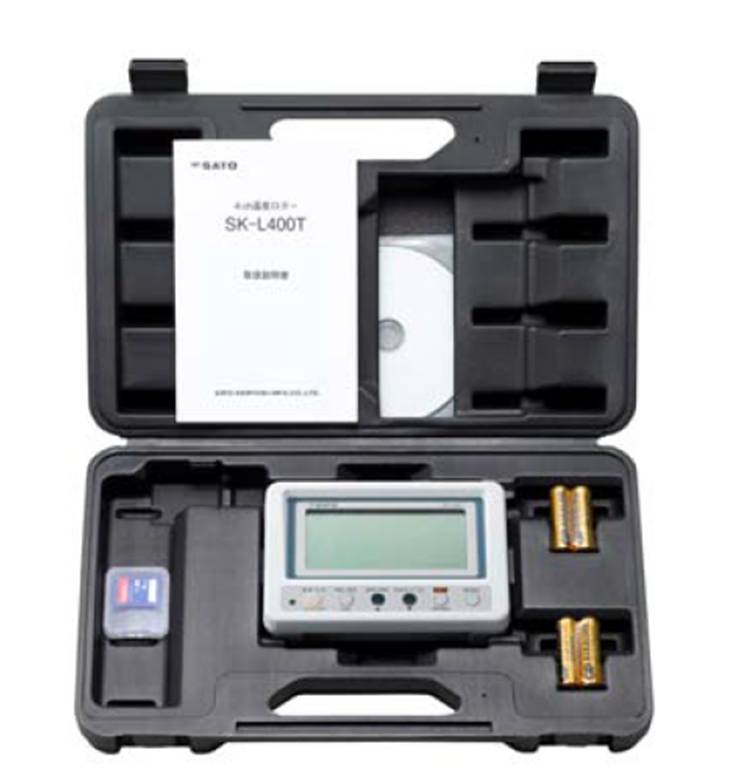

อุปกรณ์มาตรฐาน

  • Main Unit SK-L400T
  • CD‐ROM (data analysis software) x 1
  • “AA” size alkaline batteries x 4
  • SD card (4GB) x 1
  • Carrying case x 1
  • Instruction Manual in English x 1
